ECL 8439 Submersible Pressure Transmitter

Back to overview
  • Shipbuilding Shipbuilding

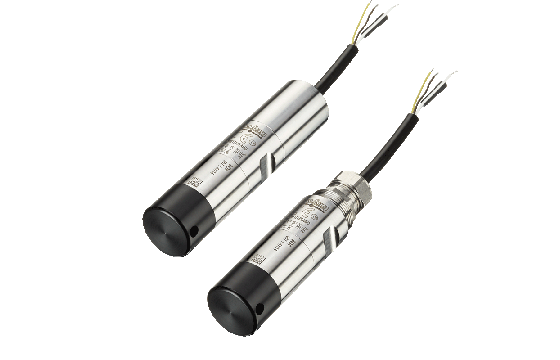

main product photo

Main features

  • Also suitable for thick and viscous media
  • Different materials for optimum media compatibility
  • Configurable measuring ranges
  • Optional: Enhanced lightning protection
About
The new Submersible Pressure Transmitter ECL is based on Trafag’s own thick-film-on-ceramic technology. The optionally configurable pressure ranges can be adapted individually via interface tool and Smartphone App.

Technical Data

More Information
Product code 8439
Name ECL
Designation Submersible Pressure Transmitter
Product category

Pressure transmitters
Measuring range 0 ... 0.1 to 0 ... 6.0 bar 0 ... 1.5 to 0 ... 100 psi
Measuring principle Thick-film-on-ceramic
Approval / conformity DNV-GL EU RO Mutual Recognition Type Approval Certificate
Accuracy @ 25°C typ. ± 0.3 % FS typ. Range 0 ... 0.1 to 0 ... 0.2 bar: ± 0.5 % FS typ.
Output signal 4 ... 20 mA
Electrical connections Cable PUR/PE
Media temperature max. -25°C ... +70°C
Ambient temperature max. -25°C ... +70°C
Measuring range

≤ 1 bar
≤ 100 bar
< 15 psi
< 1500 psi

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.
