Main features
- Pressure ranges starting from 100 mbar
- No media contacting O-rings
- Cable PUR or FEP
- Optional: chemical resistant material, in titanium
- Option: lightning protection (IEC 61000-4-5)
About
Technical Data
| Product code | 8838 |
|---|---|
| Name | NAL |

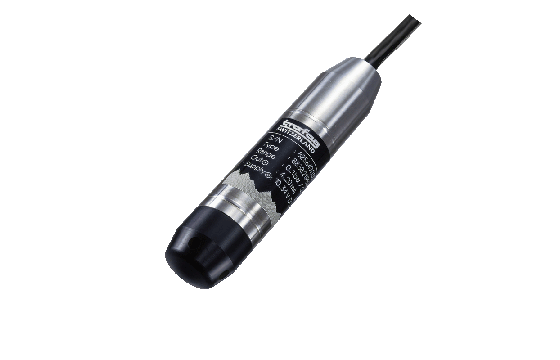

| Designation | Submersible Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 0.1 to 0 ... 25 bar |
| Measuring principle | Piezoresistive |
| Approval / conformity | DNV EU RO Mutual Recognition |
| Output signal | 4 ... 20 mA 0 ... 10 VDC |
| Electrical connections | Cable PUR/Teflon/PE |
| Pressure connections | Open; Closed; G1/4 m |
| Media temperature | -5°C ... +50°C |
| Ambient temperature | -5°C ... +50°C |
| Output signal | 4 … 20 mA0 … 10 VDC |
| Special features | High corrosion resistance |
