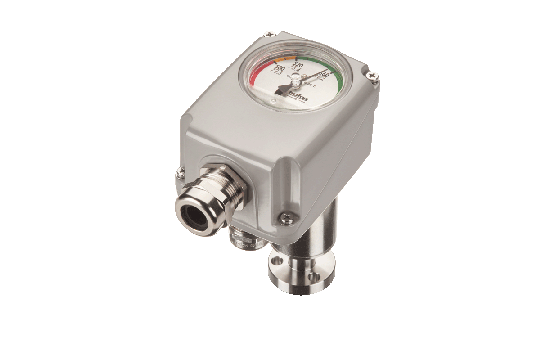

878x Hybrid Gas Density Monitor with analogue output

戻る

イメージギャラリーの最後に移動する

イメージギャラリーの最初に移動する

主な特徴

Exact switching following isochore at all temperatures
No contact bouncing
Independent, galvanically separated circuits
Continuous analogue output signal for gas density
Long term drift free sensor output signal

製品について

The hybrid gas density monitor combines self-acting monitoring with high-performance microswitches and continuous density measurement of insulating gases in one device. It covers demanding applications and maintains highest accuracy over a very wide temperature range. Trend analysis helps to detect possible leakages sooner, provides data for preventive maintenance measures and therefore facilitates compliance with greenhouse gas regulations. This precise and maintenance-free hybrid density monitor is reliable in operation over decades for indoor and outdoor applications.

テクニカルデータ

その他の情報
製品コード	878x
指定	Hybrid Gas Density Monitor with analogue output
測定原理	Mechanical monitoring: Principle: Reference gas measurement Electronic monitoring: Principle: Oscillating quartz measurement
アプリケーションの指定	Gas Density Monitor for SF6 and other gases with output signal for continuous monitoring
出力信号	Mechanical monitoring: floating change-over contact Electronic monitoring/Sensor: analogue: 6.5...20 mA current loop Output signal 6.5...20 mA current loop 0...0.85MPa absolute SF6 @ 20°C 0...56.1 kg SF6 /m3
周囲温度	-40°C ... 80°C
