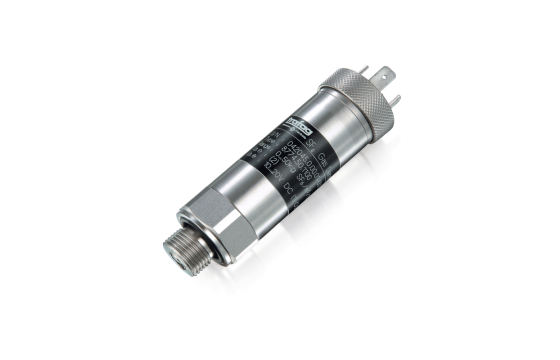

8774 Gas density sensor with analog output

戻る

イメージギャラリーの最後に移動する

イメージギャラリーの最初に移動する

主な特徴

Continuous current loop output

Suitable for outdoor and indoor applications

Long term drift free sensor output signal

製品について

Swiss based Trafag offers precise, reliable and maintenance-free instruments developed for density measuring of SF and related alternative gases. Measurement is based on the patented quartz tuning fork technology. Thus offering the most reliable and long term drift free solution on the market by directly measuring the insulating gas density.

テクニカルデータ

その他の情報
製品コード	8774
指定	Gas density sensor with analog output
測定原理	Oscillating quartz
アプリケーションの指定	Density sensor for SF6 and other gases
出力信号	Pulse-width: 10 … 292 Hz Current loop: 6.5 … 20 mA
電気的接続	EN175301-803-A (DIN 43650-A); M12x1; cable
周囲温度	-40°C ... +80°C
