ND 8204 Differential Pressure Transmitter

Back to overview

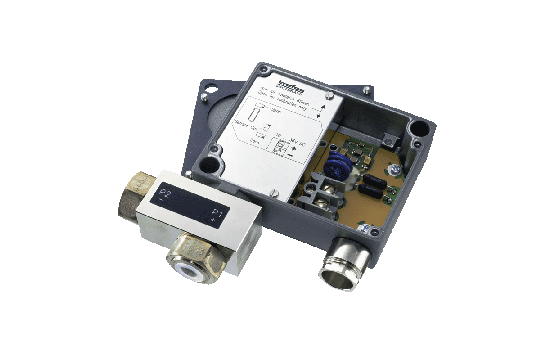

main product photo

Main features

  • High zero point stability
  • High resistance to pressure cycling
  • EMC protection, IEC 61000
About

Technical Data

More Information
Product code 8204
Name ND
Designation Differential Pressure Transmitter
Product category

Pressure transmitters
Measuring range 0 ... 1 to 0 ... 16 bar
Measuring principle Thin-film-on-steel
Accuracy @ 25°C typ. ± 0.8 % FS typ
Output signal 4 ... 20 mA (P1–P2)
Electrical connections Terminal screw 0.75 ... 2.5 mm²
Pressure connections G1/4" f
Media temperature -25°C ... +125°C
Ambient temperature -25°C ... +85°C
Measuring range

≤ 1 bar
≤ 100 bar
< 15 psi
< 1500 psi
Differential pressure

Downloads Go to file downloads

Datasheet:

Manual:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

ND5

-1 ... 16

32

4 ... 20 mA
Differential pressure: -1 ... 5.0
Maximum system pressure: 16
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.5
Supply: 12 ... 34
Type Code: 8204 58 2210

ND1.5

-1 ... 6

15

4 ... 20 mA
Differential pressure: -1 ... 1.5
Maximum system pressure: 6
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.5
Supply: 12 ... 34
Type Code: 8204 55 2210

ND6

0 ... 16

32

4 ... 20 mA
Differential pressure: 0 ... 6.0
Maximum system pressure: 16
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.5
Supply: 12 ... 34
Type Code: 8204 77 2210

ND2.5

0 ... 6

15

4 ... 20 mA
Differential pressure: 0 ... 2.5
Maximum system pressure: 6
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.5
Supply: 12 ... 34
Type Code: 8204 75 2210

ND1.0

0 ... 2.5

6

4 ... 20 mA
Differential pressure: 0 ... 1.0
Maximum system pressure: 2.5
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.5
Supply: 12 ... 34
Type Code: 8204 71 2210
Related Products
  1. MB31
    MB31
Related products
  1. N 8202

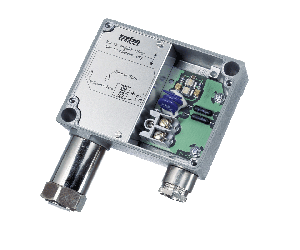

    N 8202
