Main features
- External or internal resetting
- Short response time
- Protection IP54
- Electrical connection on terminal screw
About
Technical Data
| Product code | 632 |
|---|---|
| Name | MS...R |

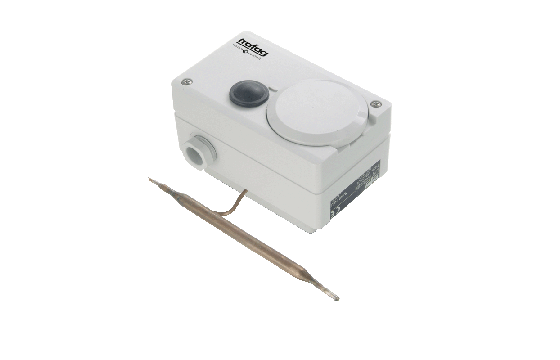

| Designation | Mini Limistat |
| Product category | Thermostats |
| Repeatability | ± 0.5 % FS typ. |
| Designation of application | Remote sensing thermostat with limiter |
| Approval / conformity | EN60730-1/ EN60730-2-9: Type 2.B.H |
| Output signal | Floating change-over contact |
| Ambient temperature | Range ≤ +45°C: -30°C ... +50°C Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C (Important: Temperature at sensor may not exceed maximum sensor temperature) |
Downloads Go to file downloads
Datasheet:
-
H72173t CN 632 MS Mini Limistatcn
pdf 364.3KB
-
H72173t DE 632 MS Mini Limistatde
pdf 300.2KB
-
H72173t EN 632 MS Mini Limistaten
pdf 299.2KB
-
H72173t ES 632 MS Mini Limistates
pdf 300KB
-
H72173t FR 632 MS Mini Limistatfr
pdf 299.9KB
-
H72173t IT 632 MS Mini Limistatit
pdf 299.5KB
-
H72173t JP 632 MS Mini Limistatjp
pdf 369.9KB
-
H72173t PL 632 MS Mini Limistatpl
pdf 300.7KB
-
H72173t PT 632 MS Mini Limistatpt
pdf 300.6KB
Manual:
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
