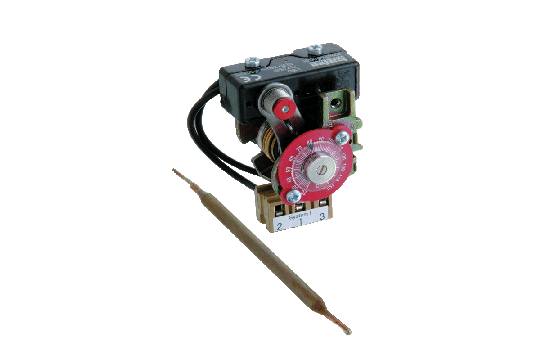

L...R 755 Labor Limistat

Back to overview

Main features

  • Without housing
  • Short response time
  • Electrical connection on terminal screw
About

Technical Data

More Information
Product code 755
Name L...R
Designation Labor Limistat
Product category

Thermostats

Measuring range -30°C ... +40°C to +70°C ... +350°C
Repeatability ± 0.5 % FS typ.
Designation of application Remote sensing thermostat with limiter, skeleton type
Approval / conformity EN60730-1/ EN60730-2-9: Type 2.B.H
Output signal Floating change-over contact
Ambient temperature Range ≤ +45°C: -30°C ... +50°C Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C (Important: Temperature at sensor may not exceed maximum sensor temperature)

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Temperature range [°C] Sensor max. [°C]

L150R

+20 ... +150

165

Sensor: Capillary tube with remote sensor
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 755 1231 122 10

L350SR

+70 ... +350

380

Sensor: Capillary tube with remote sensor
Set point adjustment: Internal switchpoint adjustment
Sensor material: 1.4435 (AISI316L)
Type Code: 755 1254 021 10

L230SR

+20 ... +230

250

Sensor: Capillary tube with remote sensor
Set point adjustment: Internal switchpoint adjustment
Sensor material: 1.4435 (AISI316L)
Type Code: 755 1224 021 10

L95R

+5 ... +95

105

Sensor: Capillary tube with remote sensor
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 755 1220 322 10

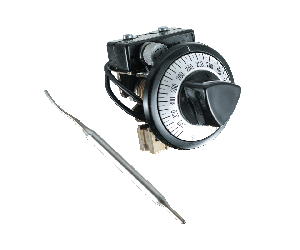

Related products
