Main features
- Compact design
- Rugged housing
- High repeatability
- Protection IP 65
- Diverse mounting positions
About
Technical Data

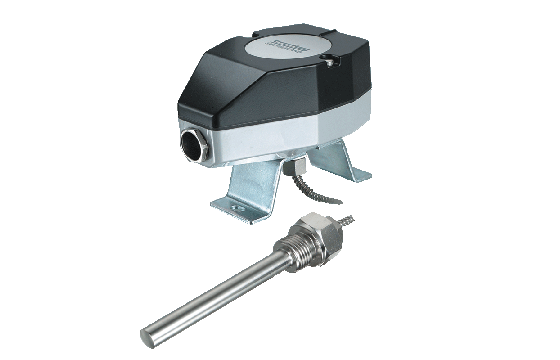

| Product code | 471/472 |
|---|---|
| Name | ISN/ISNT |
| Designation | Navistat |
| Product category | Thermostats |
| Measuring range | +20°C ... +110°C to +40°C ... +300°C |
| Repeatability | ± 0.5 % FS typ. |
| Designation of application | Thermostat for shipbuilding |
| Approval / conformity | Marine EU RO MR Type Approval |
| Output signal | Floating change-over contact |
| Ambient temperature | Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C |
Downloads Go to file downloads
Datasheet:
-
H72111q CN 471 472 ISN ISNT Navistatcn
pdf 522.1KB
-
H72111q DE 471 472 ISN ISNT Navistatde
pdf 457.5KB
-
H72111q EN 471 472 ISN ISNT Navistaten
pdf 456.6KB
-
H72111q ES 471 472 ISN ISNT Navistates
pdf 457.2KB
-
H72111q FR 471 472 ISN ISNT Navistatfr
pdf 457KB
-
H72111q IT 471 472 ISN ISNT Navistatit
pdf 456.7KB
-
H72111q JP 471 472 ISN ISNT Navistatjp
pdf 529.9KB
-
H72111q PL 471 472 ISN ISNT Navistatpl
pdf 458.1KB
-
H72111q PT 471 472 ISN ISNT Navistatpt
pdf 457.9KB
Manual:
Certificates:
-
CE UKCA Declaration of conformity 1xx 3xx 4xx 5xx 6xx 7xxen
pdf 171.9KB
-
BV Navistat 471 472en
pdf 571.3KB
-
DNVGL MR Navistat 471 472 3en
pdf 200.4KB
Did you not find the product information you were looking for? Please contact our sales team.
