FPT 8236 Flush Membrane Transmitter

Back to overview

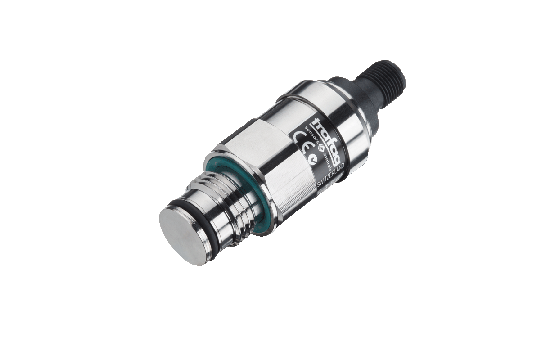

main product photo

Main features

  • Flush membrane with smooth and plain surface
  • Membrane in Duplex steel 1.4462
  • Fully welded sensor system
  • Excellent long-term stability
About
The FPT 8236 pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.

Technical Data

More Information
Product code 8236
Name FPT
Designation Flush Membrane Transmitter
Product category

Pressure transmitters
Measuring principle Thin-film-on-steel
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric
Electrical connections EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections G1/2" m, flush membrane
Media temperature –10°C ... +125°C
Ambient temperature max. –10°C ... +125°C (UL-rated Umgebungstemperatur: -20°C ... +80°C) details see section Electrical Connection
Measuring range

≤ 100 bar
< 1500 psi
Relative pressure

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

STEP files and software:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

FPT2.5A

0 ... 2.5

5

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 75 2393 05 0000 0000 19 58 61

FPT4.0A

0 ... 4

8

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 76 2393 05 0000 0000 19 58 61

FPT6.0A

0 ... 6

12

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 77 2393 05 0000 0000 19 58 61

FPT10.0A

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 78 2393 05 0000 0000 19 58 61

FPT16.0A

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 79 2393 05 0000 0000 19 58 61

FPT25.0A

0 ... 25

50

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 80 2393 05 0000 0000 19 58 61

FPT40.0A

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 81 2393 05 0000 0000 19 58 61

FPT100.0A

0 ... 100

200

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 83 2393 05 0000 0000 19 58 61

FPT2.5M

0 ... 2.5

5

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 75 2393 35 0000 0000 19 33 61

FPT4.0M

0 ... 4

8

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 76 2393 35 0000 0000 19 33 61

FPT6.0M

0 ... 6

12

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 77 2393 35 0000 0000 19 33 61

FPT10.0M

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 78 2393 35 0000 0000 19 33 61

FPT16.0M

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 79 2393 35 0000 0000 19 33 61

FPT25.0M

0 ... 25

50

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 80 2393 35 0000 0000 19 33 61

FPT40.0M

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 81 2393 35 0000 0000 19 33 61

FPT100.0M

0 ... 100

200

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply: 9 ... 30
Type Code: 8236 83 2393 35 0000 0000 19 33 61
