Main features
- Flush membrane with smooth and plain surface, Duplex steel 1.4462
- Media temperature measurement
- Fully welded sensor system
- Excellent long-term stability
- 2 Switching outputs PNP/NPN/Push-Pull configurable
About

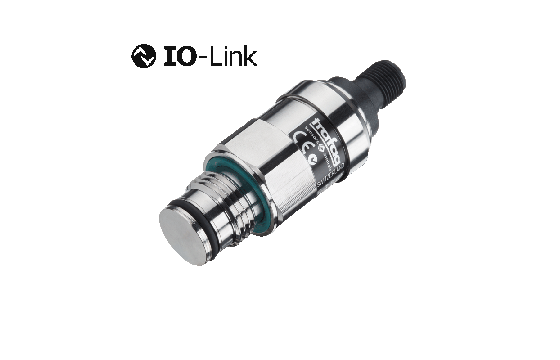

The FPI 8237 IO-Link Flush Membrane pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. The transmitter is designed as a smart sensor and provides application-relevant information in addition to the process data. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.
Technical Data
| Product code | 8237 |
|---|---|
| Name | FPI |
| Designation | IO-Link Flush Membrane Transmitter and Switch |
| Product category | Pressure transmitters |
| Measuring principle | Thin-film-on-steel |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. |
| Output signal | IO-Link 1.1, COM3, min. process cycle time 1 ms, Smart Sensor Profile ED2, 2 Switching outputs PNP/NPN/Push-Pull configurable |
| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable |
| Pressure connections | G1/2" m, flush membrane |
| Media temperature | –10°C ... +125°C |
| Ambient temperature | –10°C ... +105°C |
| Measuring range | ≤ 100 bar< 1500 psiRelative pressureDifferential pressure |
Downloads Go to file downloads
Datasheet:
Manual:
Certificates:
STEP files and software:
-
8236.XX.23.93.35en
STEP 920.7KB
-
C38657 flangeen
STEP 38.6KB
