DTP 8180 Temperature switch

Back to overview

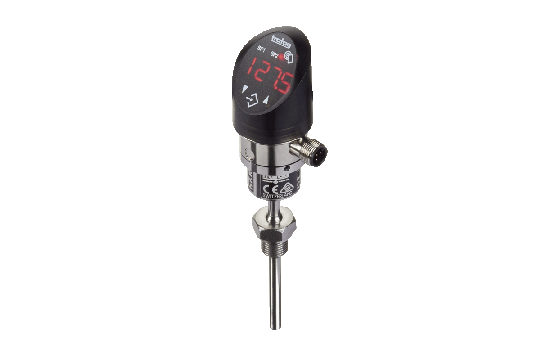

main product photo

Main features

  • Parametrisation also via NFC-smartphone App (Android)
  • Display and electrical connection are independently rotatable 335°/343°
  • Analogue output switchable mA or V
  • Integrated data logger
  • Temperature measuring range adjustable, 50 … 100 % of the nominal range
About

Technical Data

More Information
Product code 8180
Name DTP
Designation Temperature switch
Product category

Temperature transmitter
Measuring range -50°C ... +150°C / -58°F ... 302°F adjustable 50 ... 100 % FS
Measuring principle PT 1000, DIN EN 60751 class A, 2 conductors
Accuracy @ 25°C typ. ± 0.5 % FS typ.+ temperature sensor error
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
Electrical connections Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole
Pressure connections G1/8" m; G1/4" m; G1/2" m; 1/4" NPT m; 1/2" NPT m; Tri-Clamp DIN32676; Sanitary fitting DIN11851
Ambient temperature -25°C ... +85°C

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Related products

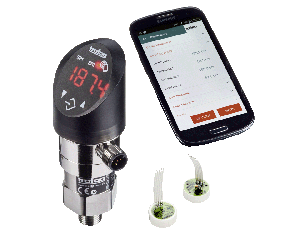

  1. DPC 8380
    DPC 8380

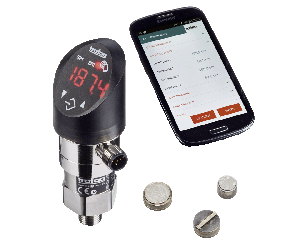

  2. DPS 8381
