Main features
- Up to 6 switch points
- Protection IP 65
- Optional: Temperature sensor PT1000 or thermostat
- Potted electrical contacts
About

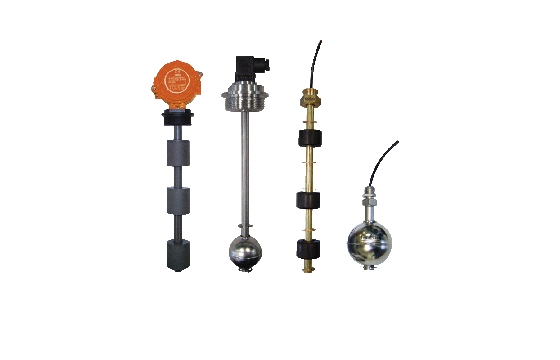

The principle of operation of these instruments is based on the drive of one or more magnetic reed contacts, placed inside of the measuring rod, by one or more floats. Up to 6 floats with individual switchpoints are available for comprehensive monitoring of the liquid level.
Technical Data
| Product code | TFS |
|---|---|
| Name | TFS |
| Designation | Float Level Switch |
| Measuring range | max. 2000 mm |
| Measuring principle | Float activated Reed contacts |
Downloads Go to file downloads
Datasheet:
-
H20041f EN TFS Float Level Switchen
pdf 795.4KB
Manual:
-
H21040 Float-level TFS-TFCen
pdf 1.5MB
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
