Main features
- Pressure ranges starting from 100 mbar
- No media contacting O-rings
- Cable PUR or FEP
- Optional: chemical resistant material, in titanium
- Option: lightning protection (IEC 61000-4-5)
About
Technical Data
| Product code | 8838 |
|---|---|
| Name | NAL |

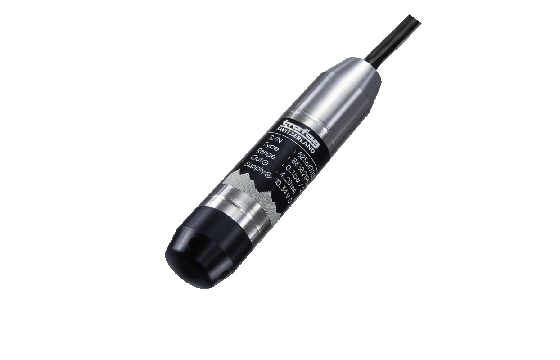

| Designation | Submersible Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 0.1 to 0 ... 25 bar |
| Measuring principle | Piezoresistive |
| Approval / conformity | DNV-GL |
| Output signal | 4 ... 20 mA 0 ... 10 VDC |
| Electrical connections | Cable PUR/Teflon/PE |
| Pressure connections | Open; Closed; G1/4" m |
| Media temperature | -5°C ... +50°C |
| Ambient temperature | -5°C ... +50°C |
Downloads Go to file downloads
Datasheet:
-
H72228n CN 8838 NAL Submersible Pressure Transmittercn
pdf 373.8KB
-
H72228n DE 8838 NAL Submersible Pressure Transmitterde
pdf 326.4KB
-
H72228n EN 8838 NAL Submersible Pressure Transmitteren
pdf 325.4KB
-
H72228n ES 8838 NAL Submersible Pressure Transmitteres
pdf 326.2KB
-
H72228n FR 8838 NAL Submersible Pressure Transmitterfr
pdf 326.2KB
-
H72228n IT 8838 NAL Submersible Pressure Transmitterit
pdf 325.7KB
-
H72228n JP 8838 NAL Submersible Pressure Transmitterjp
pdf 384.2KB
-
H72228n PL 8838 NAL Submersible Pressure Transmitterpl
pdf 327.3KB
-
H72228n PT 8838 NAL Submersible Pressure Transmitterpt
pdf 326.7KB
Manual:
Certificates:
