N 8202 Navitrag

Back to overview
  • Shipbuilding Shipbuilding

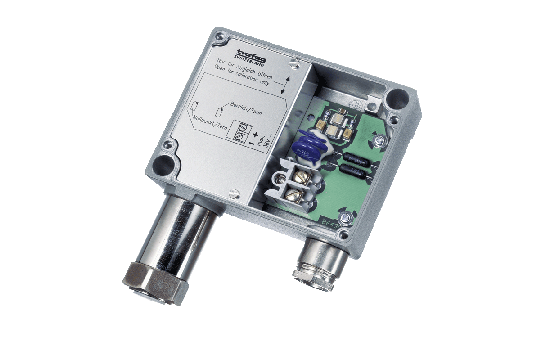

main product photo

Main features

  • Excellent long-term stability
  • Protection IP65
  • EMC protection, IEC 61000
  • Excellent resistance to pressure peaks and dynamic pressure changes
About

Technical Data

More Information
Product code 8202
Name N
Designation Navitrag
Product category

Pressure transmitters
Measuring range 0 ... 1.0 to 0 ... 600 bar
Measuring principle Thin-film-on-steel
Applications

Engine manufacturing
Shipbuilding
Approval / conformity ABS, BV, DNV-GL, KRS, LRS
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal 4 ... 20 mA
Electrical connections Terminal screw 0.75 ... 2.5 mm²
Pressure connections G1/4" f; G1/2" m
Media temperature -25°C ... +125°C
Ambient temperature -25°C ... +85°C

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

N400.0

0 ... 400

800

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 84 2210

N1.0

0 ... 1

3

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 71 2210

N6.0

0 ... 6

15

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 77 2210

N10.0

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 78 2210

N250.0

0 ... 250

500

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 74 2210

N2.5

0 ... 2.5

6

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 75 2210

N4.0

0 ... 4

10

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 76 2210

N16.0

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 79 2210

N25.0

0 ... 25

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 80 2210

N40.0

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 81 2210

N100.0

0 ... 100

200

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 83 2210
