ISP/ISPT 474 Picotherm

Back to overview
  • Shipbuilding Shipbuilding

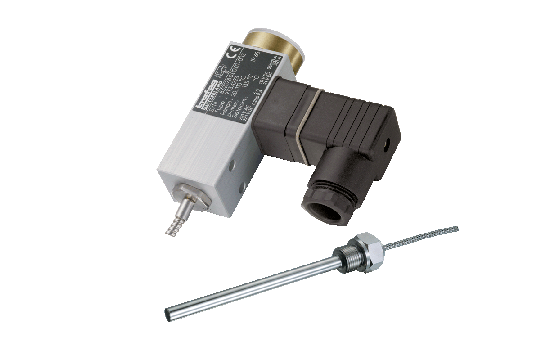

main product photo

Main features

  • Compact design
  • Rugged housing
  • High repeatability
  • Protection IP 65
  • Diverse mounting positions
About

Technical Data

More Information
Product code 474
Name ISP/ISPT
Designation Picotherm
Product category

Thermostats
Measuring range +5°C ... +95°C to +20°C ... +150°C
Repeatability ± 1 % FS typ.
Designation of application Compact thermostat for shipbuilding
Approval / conformity DNV-GL EU RO Mutual Recognition Type Approval Certificate EN60730-1/ EN60730-2-9: Type 2.B.H
Output signal Floating change-over contact
Ambient temperature -30°C ... +70°C

Downloads Go to file downloads

Datasheet:

Manual:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Temperature range [°C] Sensor max. [°C]

ISP11015

+20 ... +110

115
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0323 322 00 8316 0150 58 90 V3

ISPT11015

+20 ... +110

115
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0323 322 14 1416 0150 58 V3

ISPT15015

+20 ... +150

165
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0331 122 14 1416 0150 58 V3

ISPT9515

+5 ... +95

100
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0320 322 14 1416 0150 58 V3

ISPT9565

+5 ... +95

100
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0320 342 14 1419 0065 58 V3

ISPT11065

+20 ... +110

115
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0323 342 14 1419 0065 58 V3

ISPT15065

+20 ... +150

165
Sensor: Capillary tube with direct mounted sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0331 142 14 1419 0065 58 V3

ISP9565

+5 ... +95

100
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0320 342 00 8319 0065 58 90 V3

ISP11065

+20 ... +110

115
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0323 342 00 8319 0065 58 90 V3

ISP15065

+20 ... +150

165
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 15
Protection tube length: 65
Type Code: 474 0331 142 00 8319 0065 58 90 V3

ISP9515

+5 ... +95

100
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0320 322 00 8316 0150 58 90 V3

ISP15015

+20 ... +150

165
Sensor: Capillary tube with remote sensor
Set point adjustment: External switchpoint adjustment
Protection tube diameter: 10
Protection tube length: 150
Type Code: 474 0331 122 00 8316 0150 58 90 V3
Related products

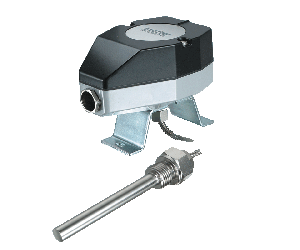

  1. ISN/ISNT 471/472
