FPI 8237 IO-Link Flush Membrane Transmitter and Switch

Back to overview

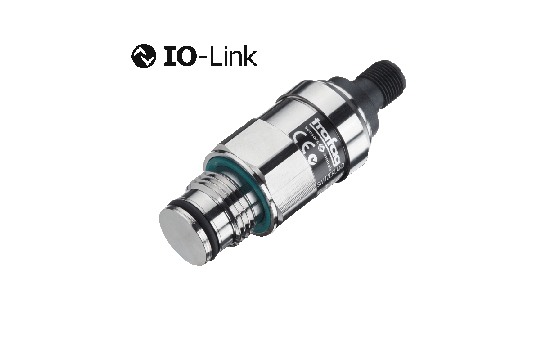

main product photo

Main features

  • Flush membrane with smooth and plain surface, Duplex steel 1.4462
  • Media temperature measurement
  • Fully welded sensor system
  • Excellent long-term stability
  • 2 Switching outputs PNP/NPN/Push-Pull configurable
About
The FPI 8237 IO-Link Flush Membrane pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. The transmitter is designed as a smart sensor and provides application-relevant information in addition to the process data. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.

Technical Data

More Information
Product code 8237
Name FPI
Designation IO-Link Flush Membrane Transmitter and Switch
Product category

Pressure transmitters
Measuring principle Thin-film-on-steel
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal IO-Link 1.1, COM3, min. process cycle time 1 ms, Smart Sensor Profile ED2, 2 Switching outputs PNP/NPN/Push-Pull configurable
Electrical connections EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections G1/2" m, flush membrane
Media temperature –10°C ... +125°C
Ambient temperature –10°C ... +105°C
Measuring range

≤ 100 bar
< 1500 psi
Relative pressure
Differential pressure

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

STEP files and software:
