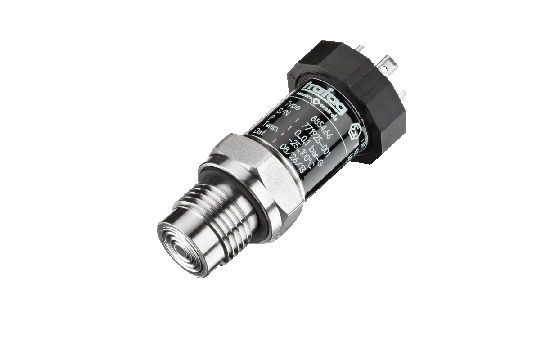

EXNA 8854 Ex Pressure Transmitter

Back to overview

Ex zones

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Ex ATEX / IECEx
Pressure ranges starting from 100 mbar
Versions with frontal or flush diaphragm
Media temperature up to 150°C
EMC protection, IEC 61000

About

The intrinsically safe EX pressure transmitter EXNA 8854 is certified to ATEX and IECEx for applications in Ex-Zones 0, 1, 2 (gas), 20, 21, 22 (dust) and mining. Due to the wide range of variants and pressure ranges from 0.1 to 1000 bar it can be configured for almost any application appropriately.

Technical Data

More Information
Product code	8854
Name	EXNA
Designation	Ex Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 0.1 to 0 ... 1000 bar
Measuring principle	Piezoresistive
Approval / conformity	DNV-GL Ex according to standards, IEC/EN 60079-0 /-11/-26, EN 50303
Output signal	4 ... 20 mA
Electrical connections	EN175301-803-A; M12x1; MIL-C 26482; Binder 723; Cable
Pressure connections	1/4"NPT m; 1/2"NPT m; G1/4" f; G1/4" m; G1/2" m; G1/2" m, frontal membrane; G1/2" m, flush membrane
Media temperature	T3: -40°C ... +150°C T4: -40°C ... +100°C T6: -40°C ... +50°C
Ambient temperature	T3: -40°C ... +125°C T4: -40°C ... +85°C T6: -40°C ... +50°C
Measuring range	≤ 1 bar ≤ 100 bar ≤ 600 bar > 600 bar < 15 psi < 1500 psi < 7500 psi > 7500 psi
