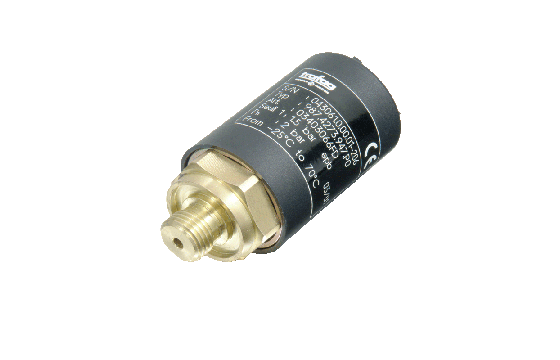

Main features
- Steel or bronze bellow
- Blade connector (IEC) 2.8 x 0.5 mm
- Compact design
- Adjustment in factory
About
Technical Data
| Product code | 987/988 |
|---|---|
| Designation | Pressostat |
| Product category | Mechanical pressure switches |
| Measuring range | -0.3 ... 1.3 to 1 ... 10 bar |
| Measuring principle | Bellow |
| Applications | Machine toolsMedium voltage technology |
| Approval / conformity | EN60730-1/ EN60730-2-6: Type 2.B.H |
| Repeatability | ± 1.0 % FS typ. |
| Output signal | 1 or 2 floating change-over contacts (SPDT) |
| Electrical connections | Blade connector |
| Pressure connections | G1/4" m |
| Media temperature | -25°C ... +80°C |
| Ambient temperature | -25°C ... +70°C |
