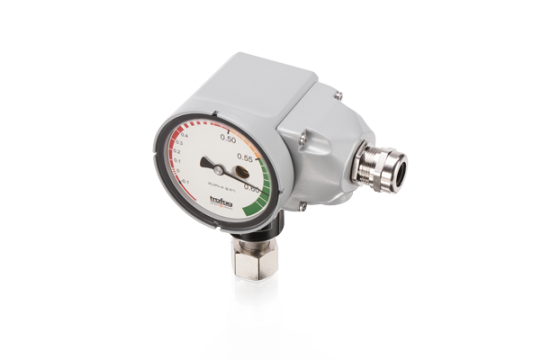

Main features
- Large dial for easy readability
- Up to five galvanically separated circuits
- Fully temperature compensated
- Suitable for outdoor and indoor applications
- Compliant with SF6 and full spectrum of alternative mixed insulation gases
About
Swiss based Trafag offers precise, reliable and maintenance-free instruments developed for density monitoring of SF6 and the full spectrum of alternative gases. Monitoring is based on the gas density reference chamber principle. Thus offering the most reliable solution on the market by directly monitoring the insulating gas density.
Technical Data
| Product code | 8719 |
|---|---|
| Designation | Gas Density Monitor with switching contacts |
| Measuring range | 0 … 1300 kPa abs. @ 20°C |
| Measuring principle | Absolute presssure reference gas measuring system |
| Output signal | Floating change-over contact (SPDT) |
| Ambient temperature | (-60) -40 ... +80°C |
| Product category | Gas density monitoring |
| Applications | Medium voltage technology |
Downloads Go to file downloads
Datasheet:
Manual:
Did you not find the product information you were looking for? Please contact our sales team.
