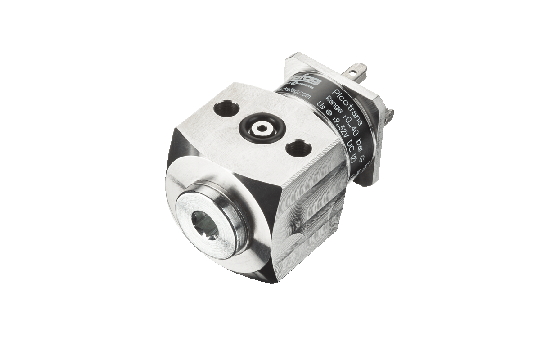

main product photo

Skip to the beginning of the images gallery

Main features

Compact design
Flange connection (PICO family)
High vibration resistance
Good temperature resistance
Completely welded steel sensor system without additional seals

About

The NPN pressure transmitter offers reliable and accurate pressure measurement over a wide temperature range. Its excellent long-term stability is based on the leading thin-film-on-steel sensor technology from Trafag. Its robust design and the block design with its optional flange connection makes the NPN the perfect choice for demanding applications such as marine and rail industries.

Technical Data

More Information
Product code	8264
Name	NPN
Designation	Picotrans
Product category	Pressure transmitters
Measuring range	0 ... 2.5 to 0 ... 250 bar
Measuring principle	Thin-film-on-steel
Approval / conformity	ABS, BV, CCS, DNV, KRS, LRS, NKK, RINA, RMRS
Accuracy @ 25°C typ.	± 0.5 % FS typ. ± 0.3 % FS typ.
Output signal	4 ... 20 mA
Electrical connections	EN175301-803-A (DIN43650-A); Cable
Pressure connections	G1/4" f; M10x1 f; G1/8" f
Media temperature	-40°C ... +100°C
Ambient temperature	-40°C ... +100°C
Measuring range	≤ 100 bar ≤ 600 bar < 1500 psi < 7500 psi

Downloads Go to file downloads

Datasheet:

H72313t CN 8264 NPN Picotrans
cn
pdf 790.7KB
H72313t DE 8264 NPN Picotrans
de
pdf 728.5KB
H72313t EN 8264 NPN Picotrans
en
pdf 724.2KB
H72313t ES 8264 NPN Picotrans
es
pdf 726.7KB
H72313t FR 8264 NPN Picotrans
fr
pdf 726.6KB
H72313t IT 8264 NPN Picotrans
it
pdf 726.2KB
H72313t JP 8264 NPN Picotrans
jp
pdf 795.2KB
H72313t PL 8264 NPN Picotrans
pl
pdf 727.4KB
H72313t PT 8264 NPN Picotrans
pt
pdf 727.2KB

Manual:

H73313m Instructions 8264 NPN Pressure Transmitter
en
pdf 335.8KB

Flyer:

H70673t CN 8264 NPN Picotrans
cn
pdf 3.7MB
H70673t DE 8264 NPN Picotrans
de
pdf 3.6MB
H70673t EN 8264 NPN Picotrans
en
pdf 3.6MB
H70673t ES 8264 NPN Picotrans
es
pdf 3.6MB
H70673t FR 8264 NPN Picotrans
fr
pdf 3.6MB
H70673t IT 8264 NPN Picotrans
it
pdf 3.6MB
H70673t JP 8264 NPN Picotrans
jp
pdf 3.7MB
H70673t PL 8264 NPN Picotrans
pl
pdf 3.6MB
H70673t PT 8264 NPN Picotrans
pt
pdf 3.6MB

Certificates:

CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB
ABS Pressure Transmitter 8264 8298 8488
en
pdf 109.3KB
BV Picotrans NPN 8264 EPN 8298
en
pdf 572.8KB
CCS EPN 8298 NPN 8264 8488
en
pdf 280.5KB
DNVGL 8264 8298 8488
en
pdf 304.1KB
KRS Pressure Transmitter 8264 8298
en
pdf 288.6KB
LR Pressure Transmitter 8264 8298 8488
en
pdf 482.5KB
NKK Pressure Transmitter 8264 8298
en
pdf 1MB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]	Output signal

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 78 2510 04 0000 0000 19 41 46 74 V3

0 ... 16

32

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 79 2510 04 0000 0000 19 41 46 74 V3

0 ... 25

50

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 80 2510 04 0000 0000 19 41 46 74 V3

0 ... 4

10

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 76 2510 04 0000 0000 19 41 46 74 V3

0 ... 40

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 81 2510 04 0000 0000 19 41 46 74 V3

0 ... 6

15

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 77 2510 04 0000 0000 19 41 46 74 V3

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 78 2510 04 0000 0000 19 46 V3

0 ... 16

32

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 79 2510 04 0000 0000 19 46 V3

0 ... 25

50

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 80 2510 04 0000 0000 19 46 V3

0 ... 4

10

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 76 2510 04 0000 0000 19 46 V3

0 ... 40

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 81 2510 04 0000 0000 19 46 V3

0 ... 6

15

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 24 (9 ... 32)

Type Code: 8264 77 2510 04 0000 0000 19 46 V3
