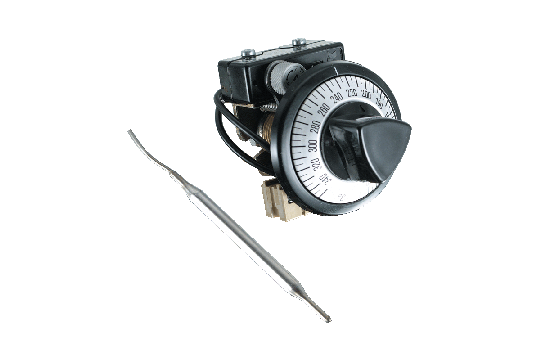

Main features
- Without housing
- Short response time
- Electrical connection on terminal screw
About
Technical Data
| Product code | 736/754 |
|---|---|
| Name | L/LF |
| Designation | Laborstat |
| Product category | Thermostats |
| Measuring range | -30°C ... +40°C to +70°C ... +350°C |
| Repeatability | ± 0.5 % FS typ. |
| Designation of application | Remote sensing thermostat, skeleton type |
| Approval / conformity | EN60730-1/ EN60730-2-9: Type 2.B.H |
| Output signal | Floating change-over contact |
| Ambient temperature | Range ≤ +45°C: -30°C ... +50°C Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C (Important: Temperature at sensor may not exceed maximum sensor temperature) |
Downloads Go to file downloads
Datasheet:
-
H72122s CN 736 754 LF Laborstatcn
pdf 605.7KB
-
H72122s DE 736 754 LF Laborstatde
pdf 544.2KB
-
H72122s EN 736 754 LF Laborstaten
pdf 543.7KB
-
H72122s ES 736 754 LF Laborstates
pdf 544.4KB
-
H72122s FR 736 754 LF Laborstatfr
pdf 543.5KB
-
H72122s IT 736 754 LF Laborstatit
pdf 543.6KB
-
H72122s JP 736 754 LF Laborstatjp
pdf 615.3KB
-
H72122s PL 736 754 LF Laborstatpl
pdf 545KB
-
H72122s PT 736 754 LF Laborstatpt
pdf 545.2KB
Manual:
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
