DPS 8381

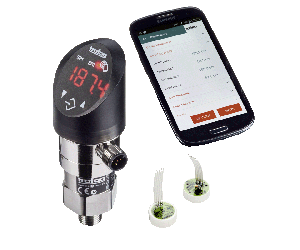

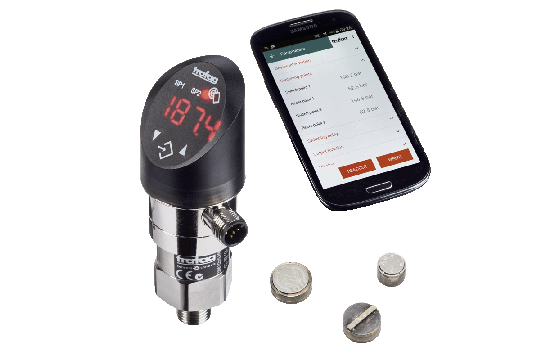

DPS 8381 Display Pressure Switch

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Parametrisation also via NFC-smartphone App (Android)
Display and electrical connection are independently rotatable 335°/343°
Analogue output switchable mA or V
Integrated data logger
Measuring range adjustable

About

The DPS 8381 is the ideal combination of pressure switch and transmitter with a pressure display. The parameters are set on the device or in a timesaving way via an NFC - smartphone App. The settings in combination with a comprehensive set of options make the DPS 8381 suitable for a wide range of demanding applications.

Technical Data

More Information
Product code	8381
Name	DPS
Designation	Display Pressure Switch
Product category	Pressure transmitters Electronic pressure switches
Measuring range	0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi adjustable
Measuring principle	Thin-film-on-steel
Accuracy @ 25°C typ.	± 0.5 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
Electrical connections	Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole
Pressure connections	G1/4 f; G1/4 m; G1/4 m with integrated damping; G1/4 m (Manometer) EN 837; G1/2 m (Manometer) EN 837; 1/4NPT m; 1/2NPT m; R1/4 m, DIN3858; M14x1.5 m, DIN6149-2; 7/16-20UNF m, DIN3866; 7/16 -20UNF m, SAE J1926-2;<
Media temperature	-25°C ... +85°C
Ambient temperature	max. -25°C ... +85°C (UL-rated ambient temperature: -20°C ... +80°C) details see section Electrical Connection
Output signal	4 … 20 mA 0 … 5 VDC 0 … 10 VDC 1 … 6 VDC 1 PNP Switch 2 PNP Switch
Special features	Integrated datalogger Measuring range adjustable

Downloads Go to file downloads

Datasheet:

H72321s CN 8381 DPS Display Pressure Switch
cn
pdf 676.5KB
H72321s DE 8381 DPS Display Pressure Switch
de
pdf 592KB
H72321s EN 8381 DPS Display Pressure Switch
en
pdf 590.9KB
H72321s ES 8381 DPS Display Pressure Switch
es
pdf 592.2KB
H72321s FR 8381 DPS Display Pressure Switch
fr
pdf 592.4KB
H72321s IT 8381 DPS Display Pressure Switch
it
pdf 592.2KB
H72321s JP 8381 DPS Display Pressure Switch
jp
pdf 691.6KB
H72321s PL 8381 DPS Display Pressure Switch
pl
pdf 593.3KB
H72321s PT 8381 DPS Display Pressure Switch
pt
pdf 593KB

Manual:

H73320r Instructions 8380 8381 DPC DPS Pressure Switch with Display
en
pdf 521.6KB

Certificates:

Trafag UL Certificate E516645 Vol1 Sec1 current
en
pdf 324.8KB
CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB

STEP files and software:

8381.XX.XX.10.32
en
STEP 743.5KB
8381.XX.XX.10.35
en
STEP 759.1KB
8381.XX.XX.11.32
en
STEP 761KB
8381.XX.XX.11.35
en
STEP 776.5KB
8381.XX.XX.15.32
en
STEP 789.7KB
8381.XX.XX.15.35
en
STEP 805.3KB
8381.XX.XX.17.32
en
STEP 786.3KB
8381.XX.XX.17.35
en
STEP 801.9KB
8381.XX.XX.18.32
en
STEP 746KB
8381.XX.XX.18.35
en
STEP 761.5KB
8381.XX.XX.19.32
en
STEP 747.7KB
8381.XX.XX.19.35
en
STEP 763.4KB
8381.XX.XX.24.32
en
STEP 802.7KB
8381.XX.XX.24.35
en
STEP 818.3KB
8381.XX.XX.30.32
en
STEP 747.4KB
8381.XX.XX.30.35
en
STEP 763KB
8381.XX.XX.31.32
en
STEP 1.4MB
8381.XX.XX.31.35
en
STEP 792KB
8381.XX.XX.42.32
en
STEP 764.7KB
8381.XX.XX.42.35
en
STEP 780.3KB
8381.XX.XX.51.32
en
STEP 747.2KB
8381.XX.XX.51.35
en
STEP 762.8KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]

DPS2.5PAP1

0 ... 2.5

7.5

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 75 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS4.0PAP1

0 ... 4

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 76 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS6.0PAP1

0 ... 6

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 77 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS10.0PAP1

0 ... 10

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 78 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS16.0PAP1

0 ... 16

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 79 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS25.0PAP1

0 ... 25

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 80 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS40.0PAP1

0 ... 40

120

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 81 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS60.0PAP1

0 ... 60

180

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 82 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS100.0PAP1

0 ... 100

300

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 83 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS160.0PAP1

0 ... 160

480

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 85 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS250.0PAP1

0 ... 250

750

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 74 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS400.0PAP1

0 ... 400

1000

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 84 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS600.0PAP1

0 ... 600

1500

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 30

Type Code: 8381 86 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2
