Valve options

For easy and safe handling

The Trafag density monitors have a modular design and can be supplemented with integrated and therefore very space-saving valve options.

A gas-insulated switchgear system should have as few mechanical interfaces as possible to minimize the risk of gas leaks.

Filling the system with the insulating gas and a required gas quality analysis requires dedicated process connections, which mean additional space and costs. The filling valve integrated in the density monitor provides this highly efficiently and compactly and reduces the number of process connections.

With kind support of SwissgridWith kind support of Swissgrid
With kind support of Swissgrid

In addition, legal greenhouse gas regulations require the regular checking of the correct functionality of the density monitors. The integrated test valve can be used to check the density monitors while they are installed, which saves an enormous amount of time and reduces the number of interruptions to documentation for routine maintenance.

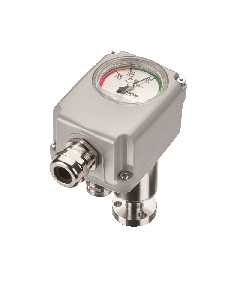

Gas density monitor from Trafag with valveGas density monitor from Trafag with valve
Gas density monitor from Trafag with valve from sideGas density monitor from Trafag with valve from side

Integrated density monitor test valve

Greenhouse regulations require regular verifications of the used equipment. The test valve allows in-situ microswitch point or sensor checkings without dismounting the monitor from the pressure compartment. Test equipment is connected via a standardised DN8 port during normal operation under nominal system pressure.

Normal operation
Visualization of Integrated density monitor test valve: Normal operationVisualization of Integrated density monitor test valve: Normal operation
Monitor test mode
Visualization of Integrated density monitor test valve: Monitor test modeVisualization of Integrated density monitor test valve: Monitor test mode

Integrated process gas test and re-fill valve

The test and re-fill valve offers two essential functionalities. Firstly, it provides the capability to analyze in-situ the gas quality of the pressure compartment. On the other hand, it is a re-filling valve that allows direct insulating gas replenishment of the pressure compartment. Test or re-fill equipment is connected via a standardised DN8 port during normal operation under nominal system pressure.

Normal operation
Visualization of Integrated process gas test and re-fill valve: Normal operationVisualization of Integrated process gas test and re-fill valve: Normal operation
Monitor test mode
Visualization of Integrated process gas test and re-fill valve: Monitor test modeVisualization of Integrated process gas test and re-fill valve: Monitor test mode
